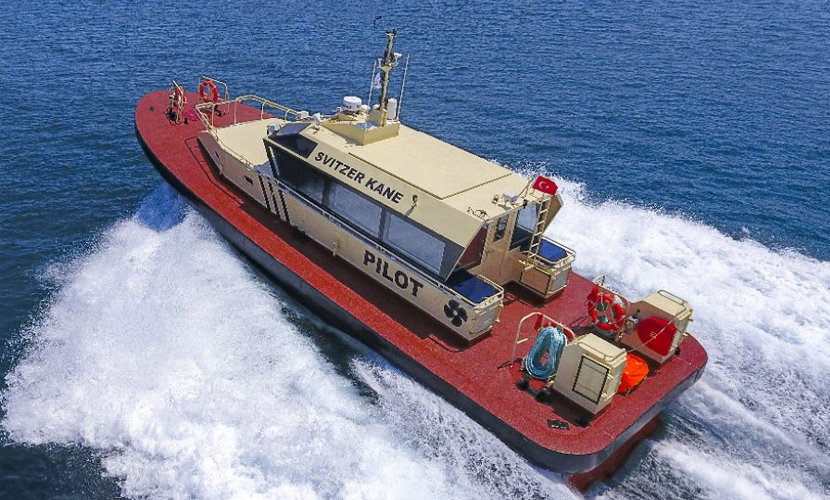

Pilot Boat 1700 Series is configured as conventional twin-screw Pilot Boat. The vessel is designed by Camarc for multipurpose operations including ship-assist, pilot transfer duty, crew transport, etc. With a significantly low air draft and a shallow navigational draft, there are few places inaccessible for these Pilot Boats. 1700 Series can be configured for the maximum speed of 26 knots which is a really high performance for a steel hull vessel under 20 meter length.
1700 Series outfitted to high standards in a compact space for crew of up to 4 people. The lower accommodation deck consists of a combined mess and pantry, One quad crew cabins with a shared en-suite. The wheelhouse is designed for maximum all-round visibility from the forward control station, with conventional helm controls.
GENERAL FEATURES
BASIC FUNCTIONS | Pilot, Crew Transfer, Patrol Duties |
CLASSIFICATON | BV I • Hull • Mach Coastal Area |
SPEED (SERV/MAX) | 18.0 / 20.0 knots |
CAPACITY | 6 Pilots / 2 Crew |
DIMENSIONS
LENGTH OVERALL | 16,70 m |
BEAM OVERALL | 5,40 m |
DEPTH AT SIDES | 2,40 m |
DRAFT (DESIGN/MAX) | 1,50 m / 1,70 m |
FUEL OIL CAPACITY | 3.800 liters |
F. WATER CAPACITY | 500 liters |
SEWAGE CAPACITY | 300 liters |
MACHINERY
MAIN ENGINE | Volvo Penta D16 |
POWER | 2x 750 hp @ 1900 rpm |
GEARBOX | 2x Twindisc 2:1 |
PROPULSION | 900 mm Dia. FP Propellers |
AUX. ENGINE | 2x 27 kW Single Phase |
VENTILATION | 24V 14.000 m3/h |
AIR CONDITIONING | 2x Chilled Water System |
EQUIPMENT
GMDSS AREA | A1 |
NAVIGATION SET | Furuno / Sailor |
LIFE SAVING | Viking Life Saving |
FIRE FIGHTING | Aerosol Fixed Fire Extinguisher |
PUMPS | CEM Pumps |
ANCHORAGE | 2x 22 kgs HHP Anchor |
WINDLASS | Data Hydraulic 1,5 ton |
